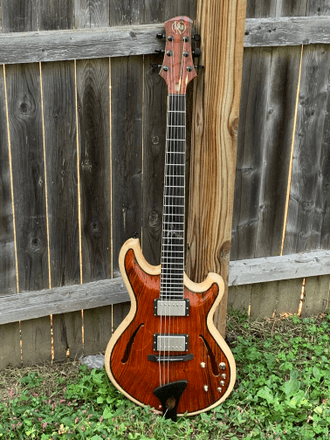

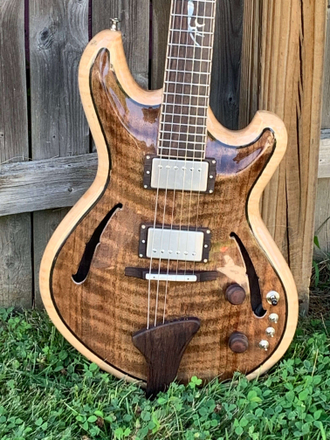

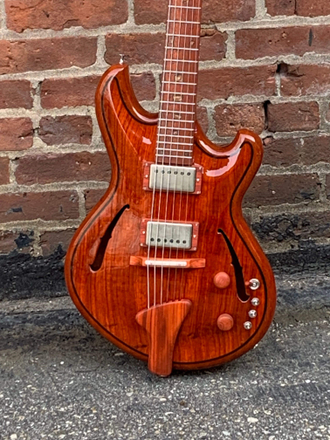

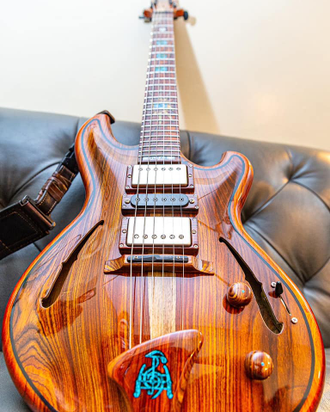

Kalos

Construction
Full Hollow, Parallel Braced Top. Set-In Top and Back
Body Rim
Maple or Walnut Multiply Wood Purfling
Top/Back
Flamed Maple
Neck
Multiply Laminated Flamed Maple
Neck Joint
Full Width Tenon
Bridge
Hand Carved Wood
Saddle
Brass Pre Compensated
Tailpiece
Hand Carved Wood w/ Aluminum Underframe
Fingerboard
Rosewood or Ebony
Pickups
DGN Tru-PAF, Optional JGS Middle
Pots/Caps
Bourns 500k Mini Pots, NOS PIO Capacitor
Knobs
Hand Carved Wood
Pickup Rings
Hand Carved Wood
Nut
Bone 1 11/16"

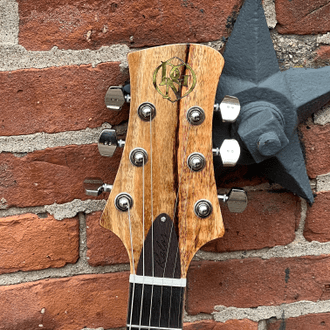

Tuning Machines
Gotoh 510
Scale Length
25.5"
# of Frets
24
Fingerboard Radius
12"
Strings
D'Addario EXL110 10-46
Case
Deluxe Flight Case

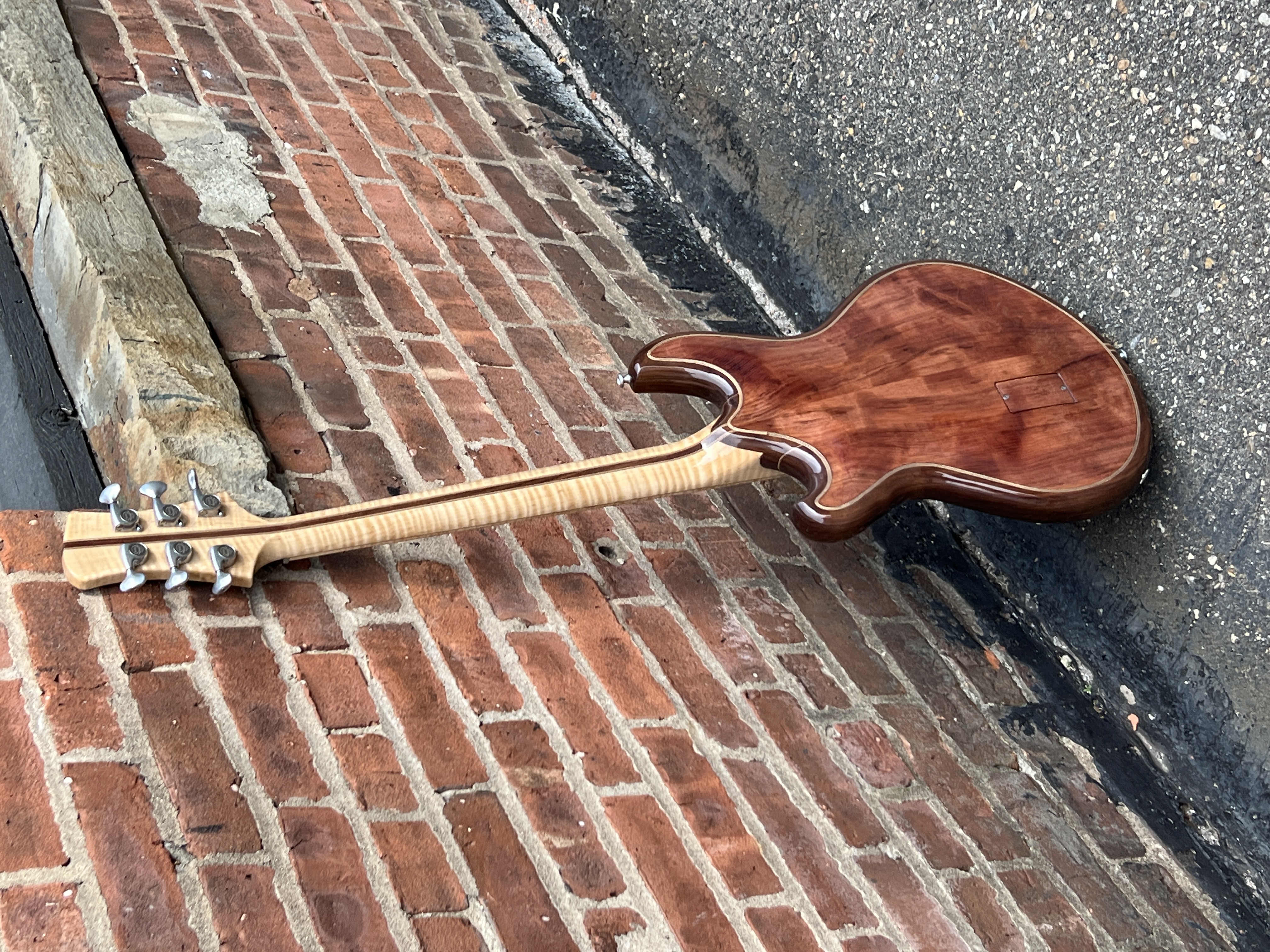

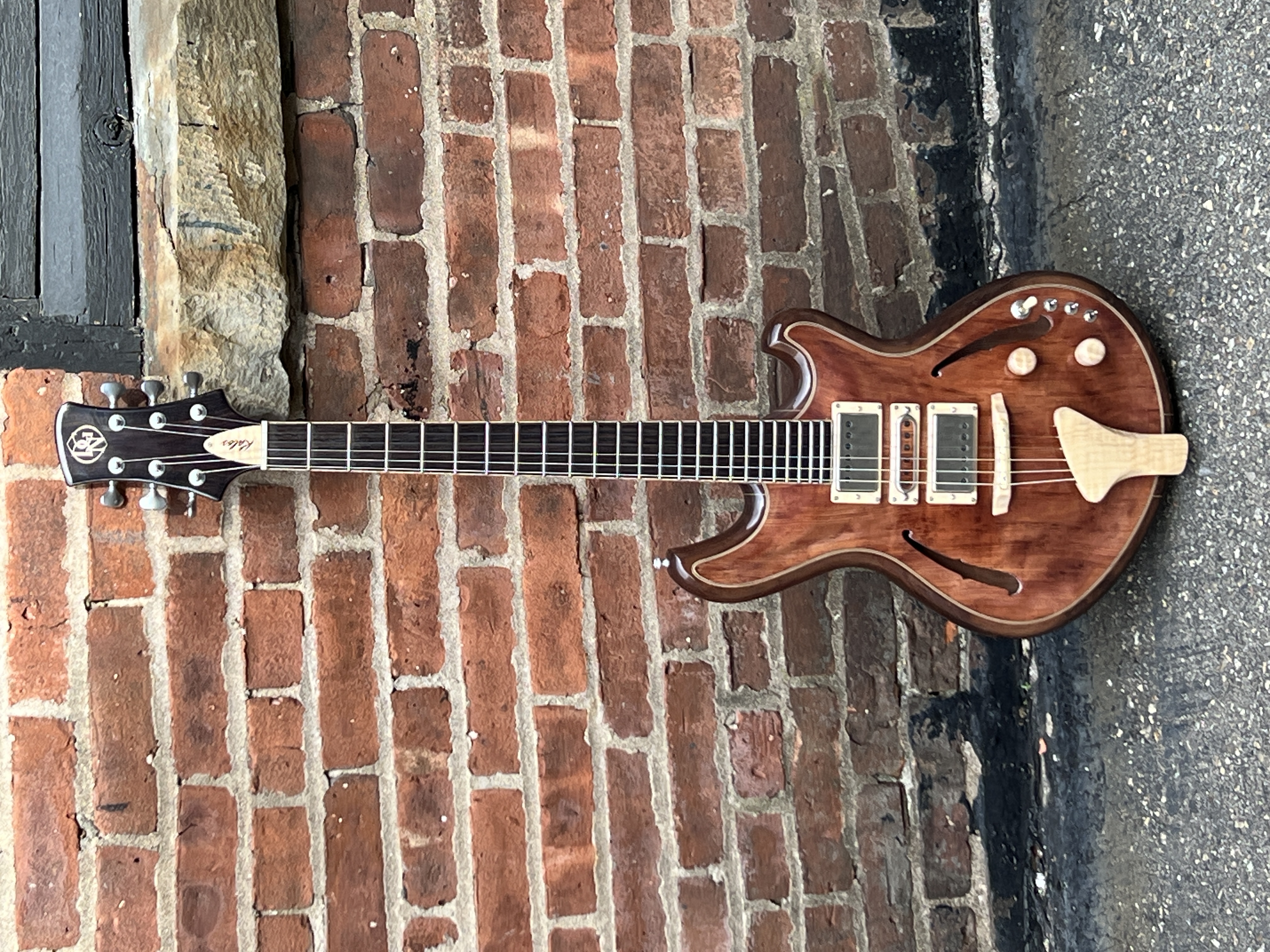

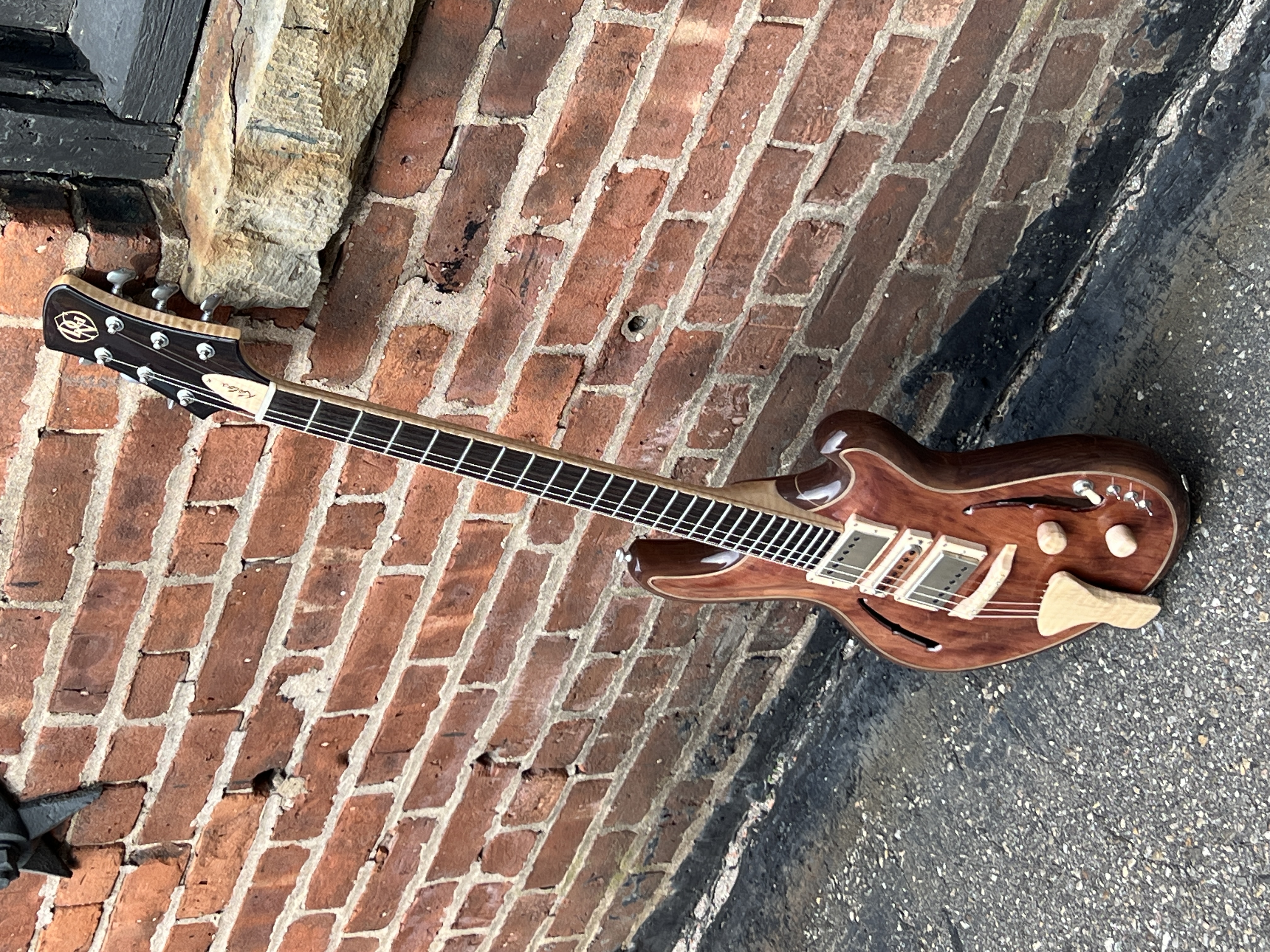

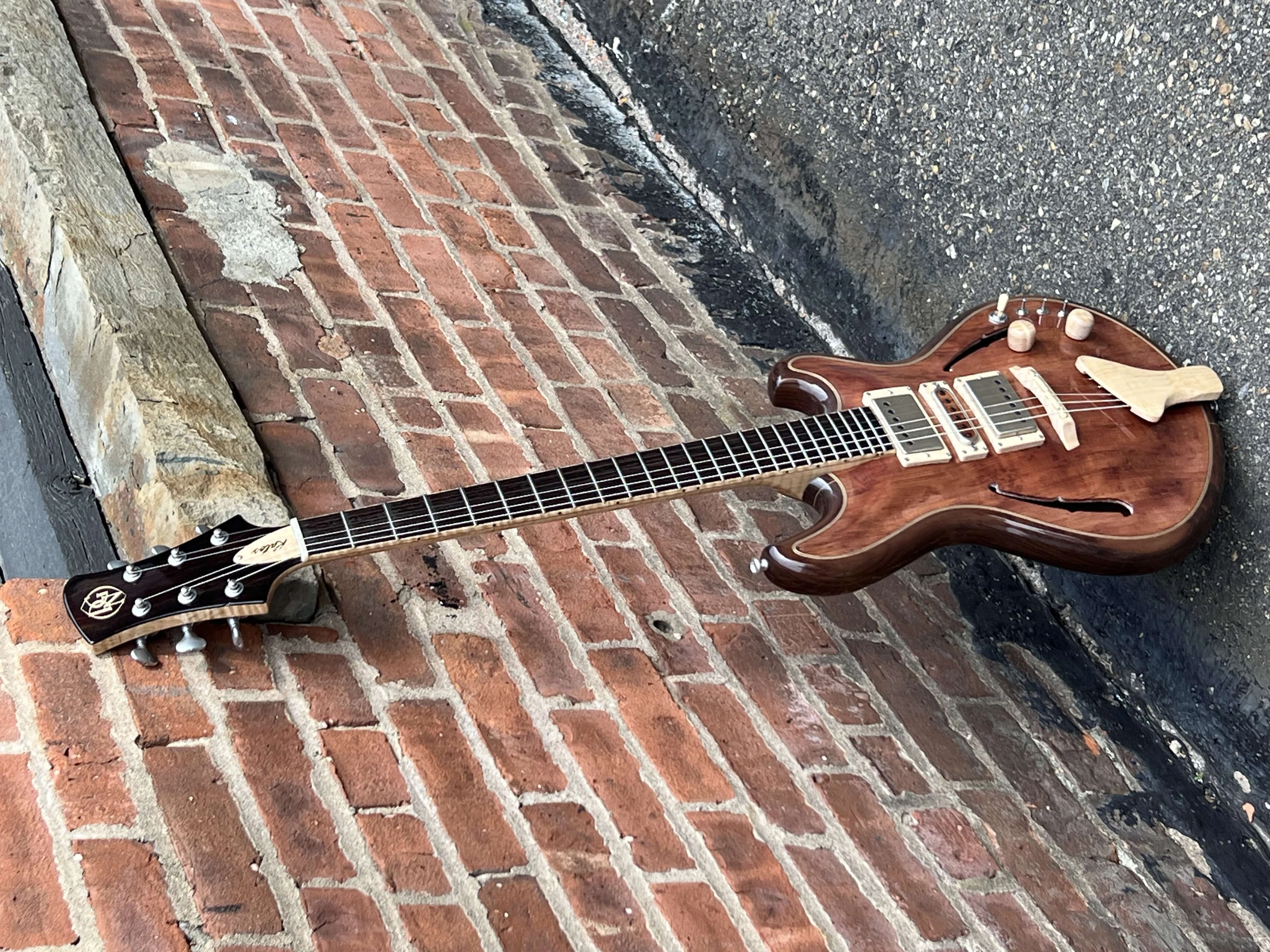

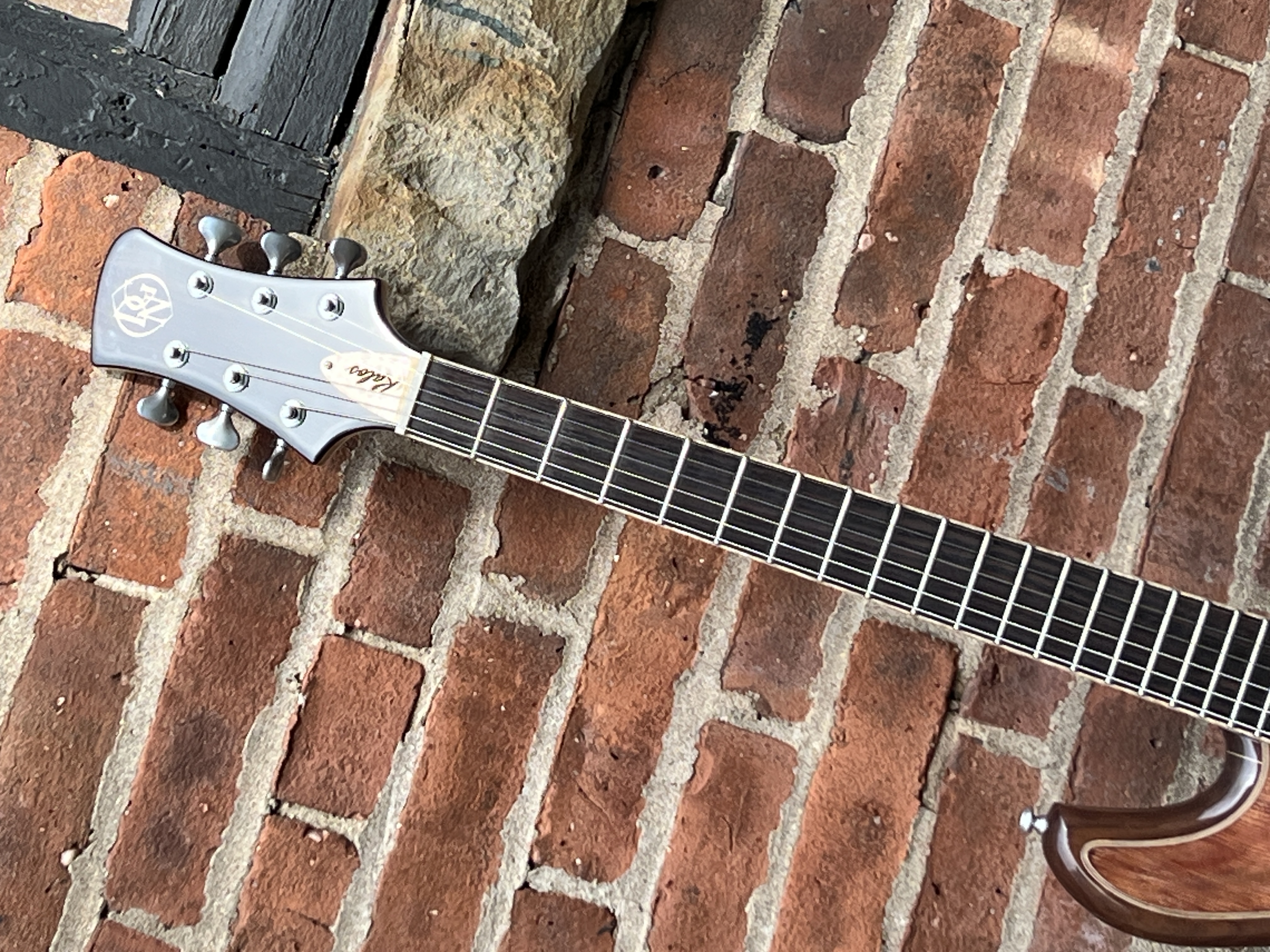

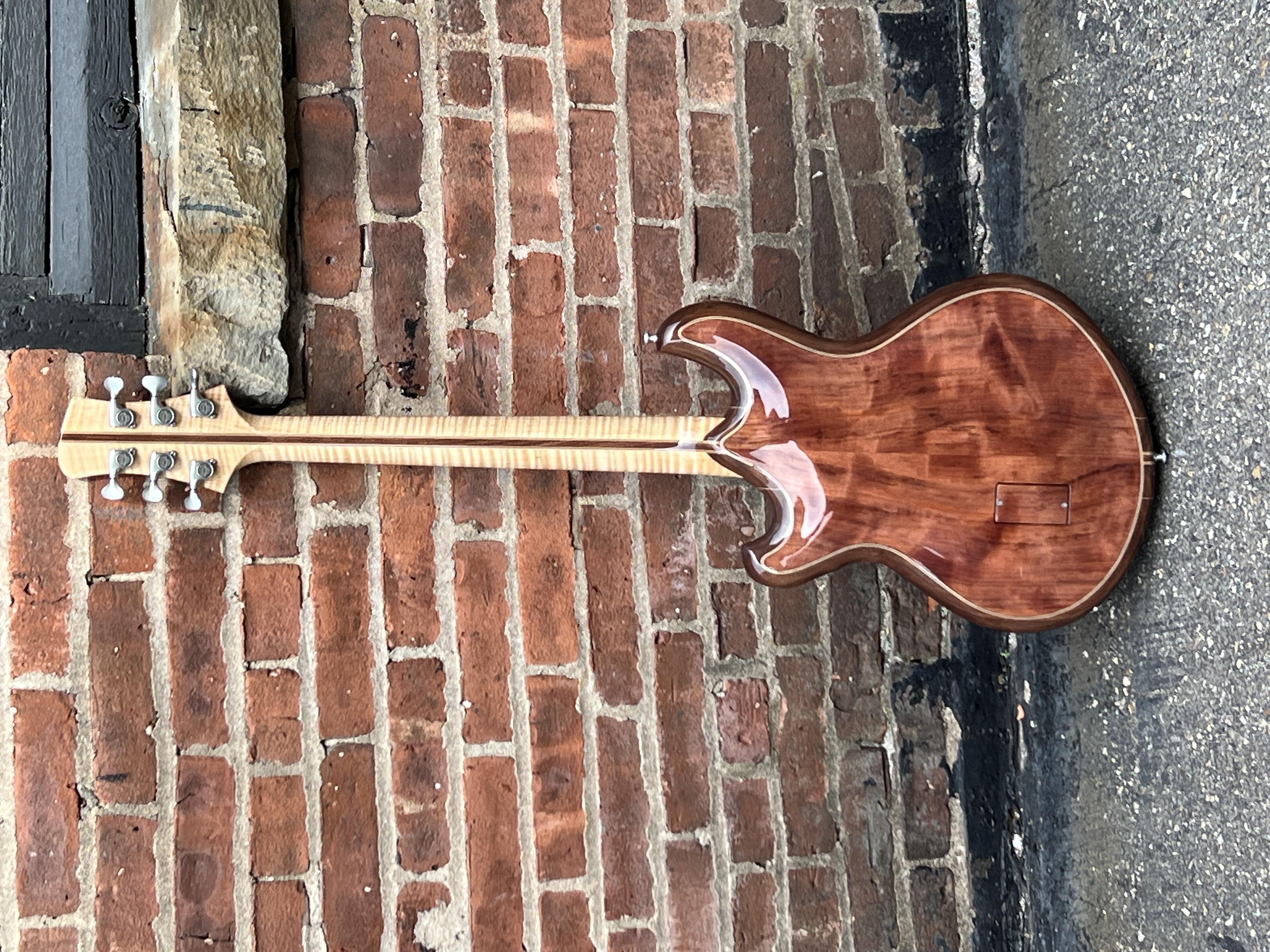

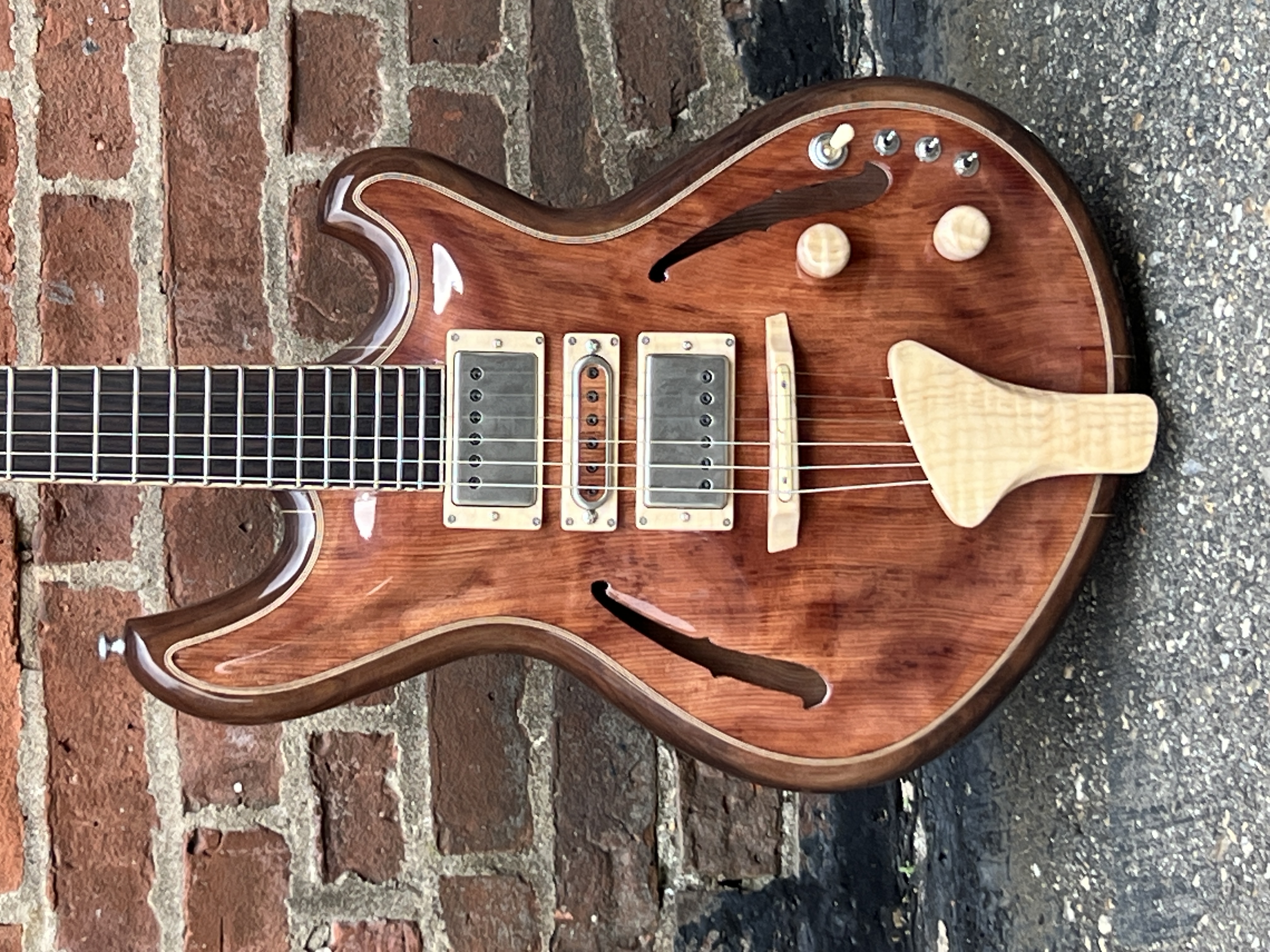

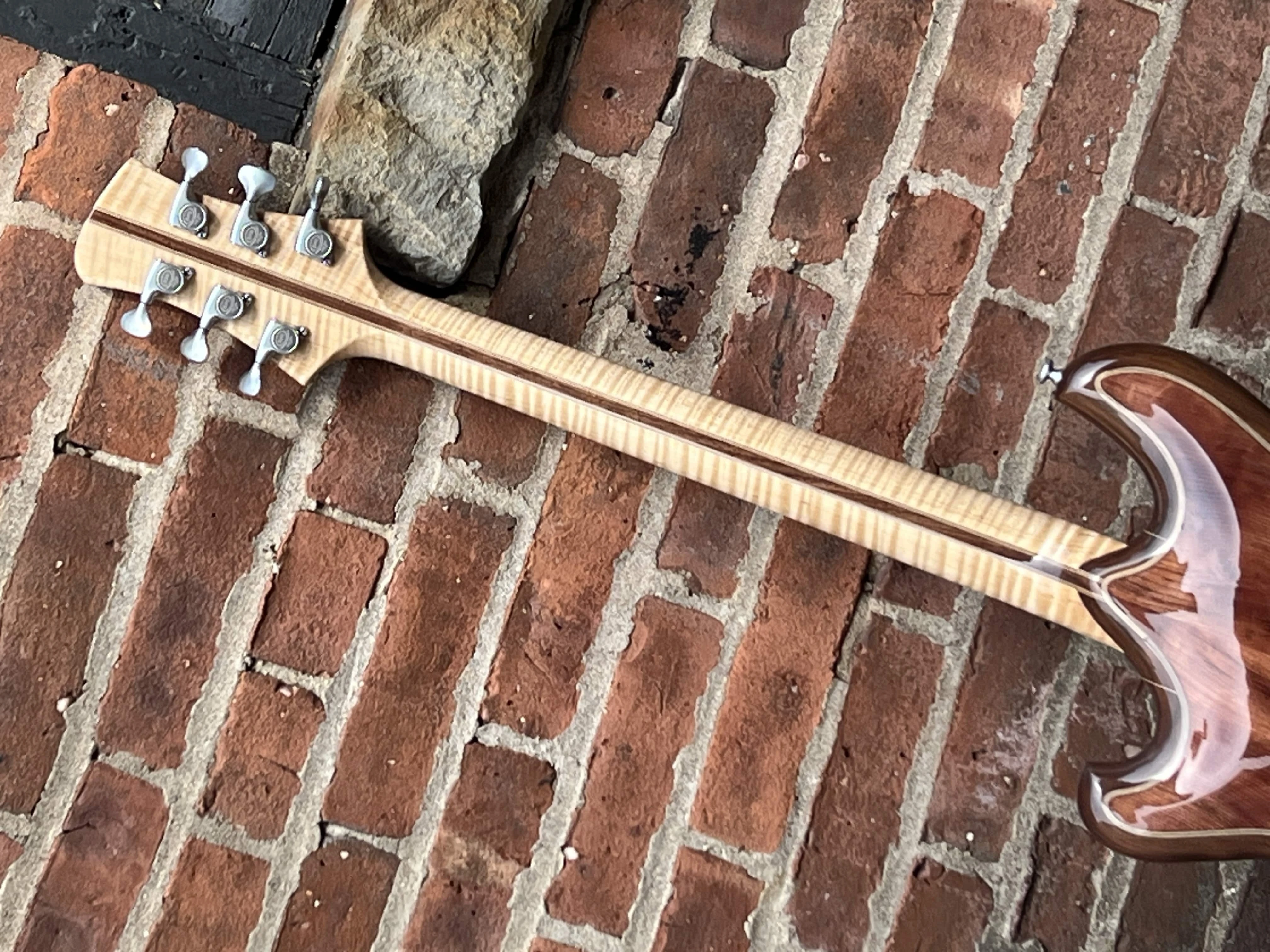

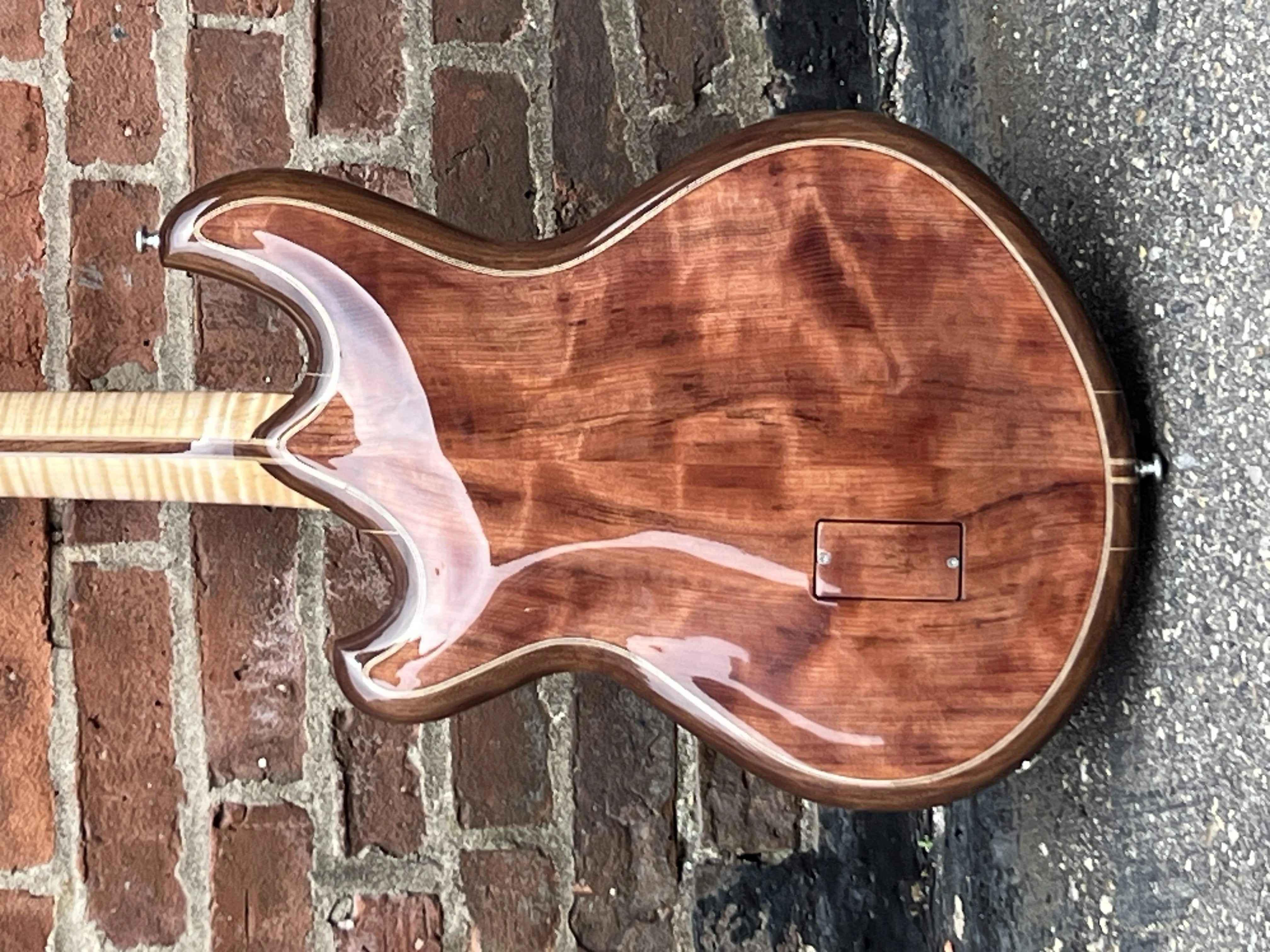

To start off, the body of the Kalos, or soundbox, is built using a modern style of archtop construction. Traditional archop guitars feature sides that are bent using heat or steam. Kerfing and blocks at the neck joint and end pin area create a ledge wide enough to support the top and back. In most cases these sides are very thin and the soundbox overall is very fragile. With the Kalos, I took a very different approach. The body of the Kalos was designed and built around a laminated solid wood rim assembly. The top and back are set into, not on top of, the rim assembly resulting in a sound box that is incredibly strong and most importantly very resonant with less glue joints connecting everything together. The biggest advantage to a top and back that are set into the rim assembly is the body doesn't require a binding edge to protect the fragile glue joint between the top/kerfing/sides. Instead, the edge of the body can be heavily rounded resulting in a guitar that in incredibly comfortable with no hard edges. The necks are constructed by laminating 3-5 pieces of eastern figured maple which makes them incredibly strong and stable. The heart of the neck is a low profile 2 way truss rod that keeps the neck straight as an arrow no matter the thickness. The top and back wood has a profound effect on the overall tone of this instrument. A hard wood like Cocobolo or Rosewood gives the Kalos an upper mid bite. Throw a little (or a lot) of overdrive on it and you are guaranteed to cut through the mix like a hot knife through butter. Single notes have a very distinct fatness and clarity towards the brighter side of the spectrum without even a hint of harshness. On the opposite end of the spectrum, a softer wood such as Redwood or Spruce gives the Kalos acoustic guitar like properties. The overall feel of the guitar leans towards the low mid of the tonal spectrum. Full strummed chords are huge and single notes are fat and snappy. A Maple, Walnut or Hawaiian Koa top ends up somewhere right in the middle of the spectrum, being an excellent all around choice with a heavy mid tone that sits in the mix perfectly. Single notes and chords alike are full and bloom with overtones. The full hollow Kalos is the culmination of 15 years building custom guitars. Its the most lively and alive guitar I've ever built. The acoustic tone is huge for its size, and this transfers over when plugged in. The top is tap tuned to perfection to produce natural harmonic sustain and a fatness like no other. The notes practically jump off of the fingerboard. This guitar covers a ton of tonal territory and its small body double cutaway construction is designed with the Jam Band and Blues guitarist in mind. And it loves loves loves overdrive. With the added DGN JGS middle pickup and DGN Blaster circuit, the Full Hollow Kalos will take you from Trey to Jerry and back again all in one long strange weekapaug groove.
